23KV Sınıfı Füzyon Bağlantı
- Model: 23KV Class
The 23 kV Class Fusible Link is designed to deliver dependable overcurrent protection for medium-voltage overhead distribution systems. Serving as the deliberate weak point in the circuit, it isolates faults quickly and prevents damage to transformers, lateral lines, and key distribution assets.
Düşük kayıp, Yüksek kesinti kapasitesi
Resetting Mechanlsm&Emergency Control, Easy for Malntalnance
Tam Sertifika
Temel Özellikler
1. Rated for 23 kV Class Systems
Ensures fast and predictable fault isolation in medium-voltage utility networks.
2. Precision-Melt Fuse Element
Provides consistent time-current characteristics compliant with ANSI/IEEE standards.
3. Weather-Resistant Construction
Manufactured for long-term outdoor endurance: UV-stable, corrosion-resistant, and temperature-rugged.
4. Seamless Compatibility
Fits standard cutouts for quick replacement and reduced service downtime.
5. Multiple Current Ratings
Supports a variety of distribution protection needs, from transformers to tap lines.
-
Standartlar
❶ Model and specification
15kV sınıfı 23KV class 34.5KV class Refer to curve (K) 15TC6K 23TC6K 34.5TC6K 6 15TC8K 23TC8K 34.5TC8K 8 15TC10K 23TC10K 34.5TC10K 10 15TC12K 23TC12K 34.5TC12K 12 15TC15K 23TC15K 34.5TC15K 15 15TC20K 23TC20K 34.5TC20K 20 15TC25K 23TC25K 34.5TC25K 25 15TC30K 23TC30K 34.5TC30K 30 15TC40K 23TC40K 34.5TC40K 40 15TC50K 23TC50K 34.5TC50K 50 15TC60K 23TC60K 34.5TC60K 60
❷ Interrupting rating. Application Voltage is single phase line to ground and/or three phase line to line
interrupting Rating Uygulama Voltajı Interrupting Rating(rs symmetrical amperes 7.2KV 3500 12.0KV 3000 14.4KV 2500 23.0KV 1200 34.5KV 1200 -
Ürün Boyutu
Ana Boyutlar Genel Bakış
Aşağıdaki çizimler yalnızca kısmi ürün boyutlarını gösterir.
Tam mühendislik çizimleri veya tam teknik özellikler için lütfen bizimle iletişime geçin: [📪nancywang@ketranele.com].
-

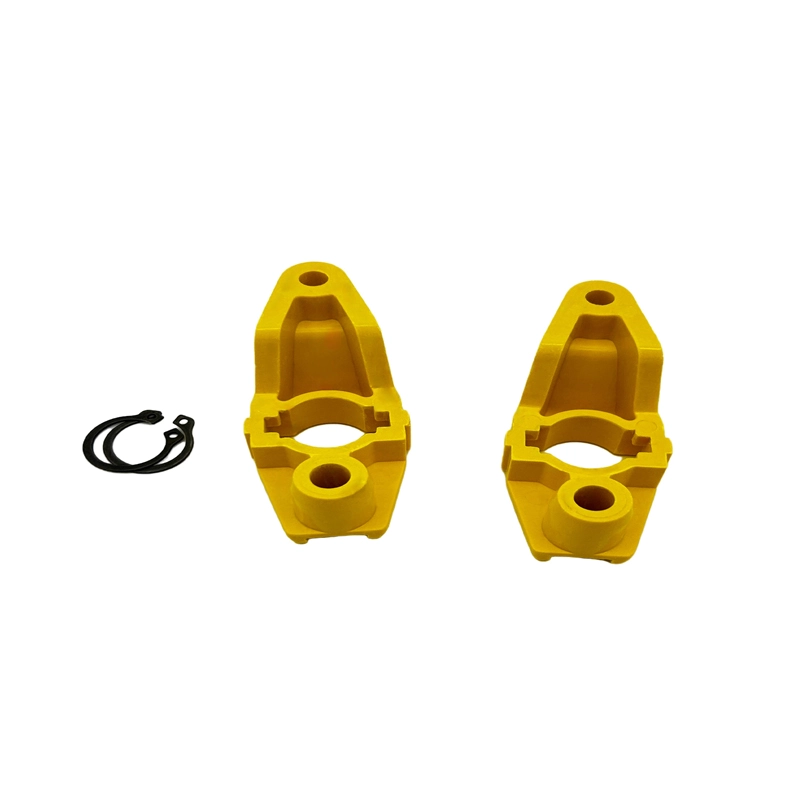

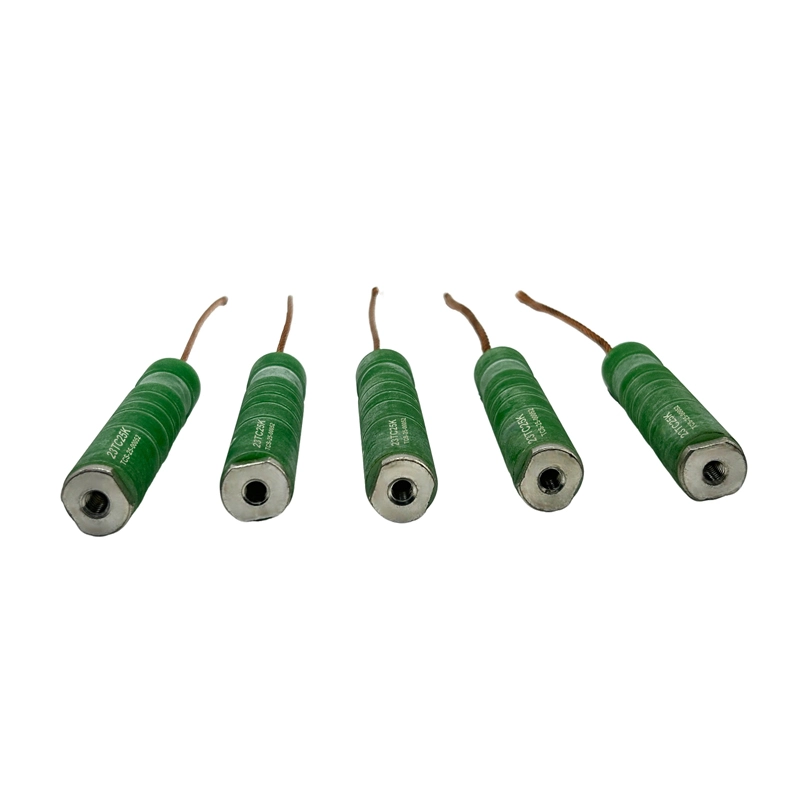

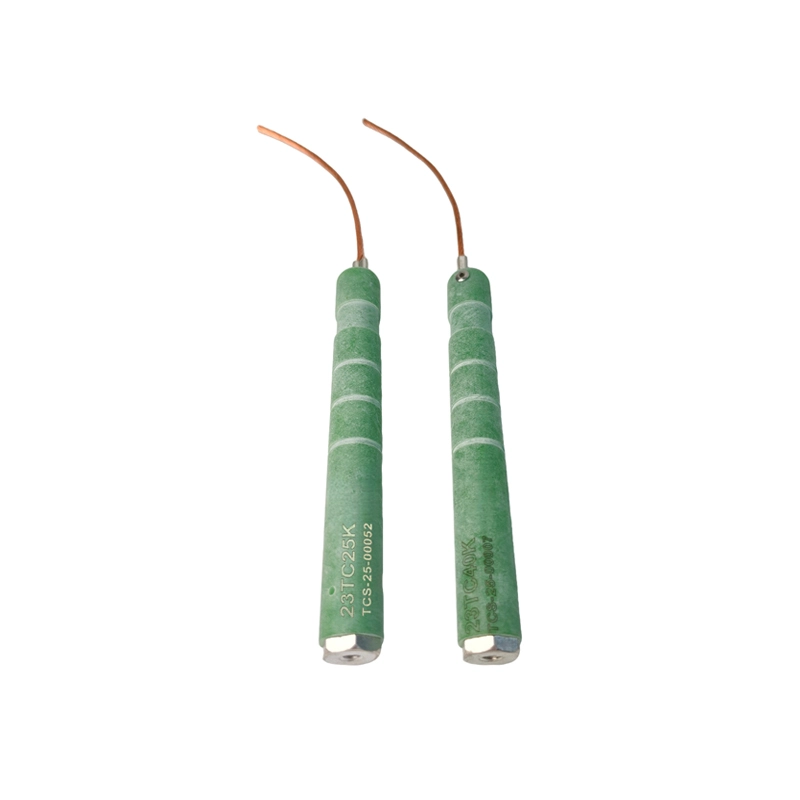

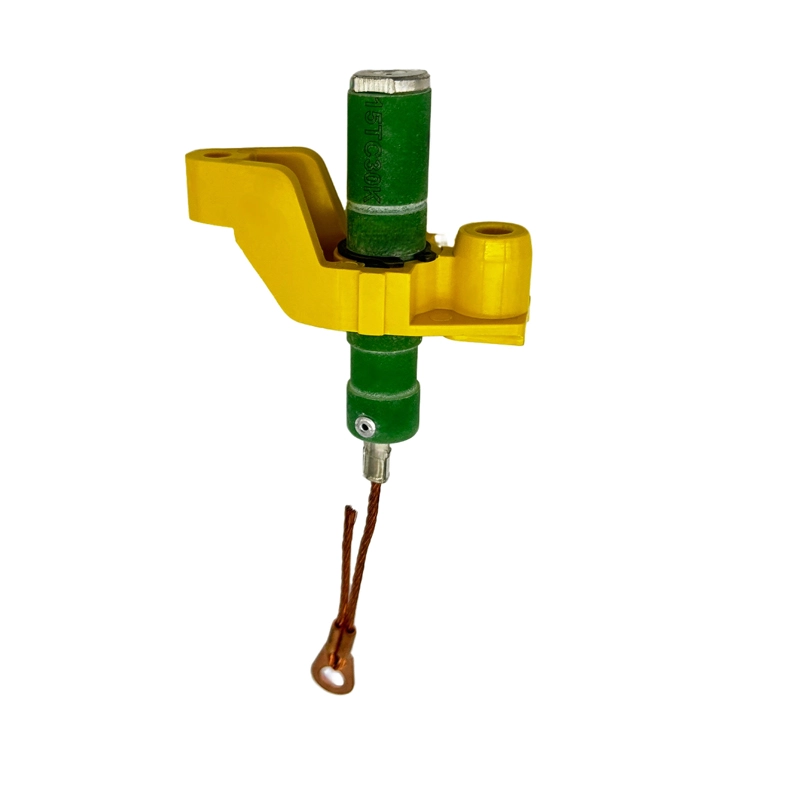

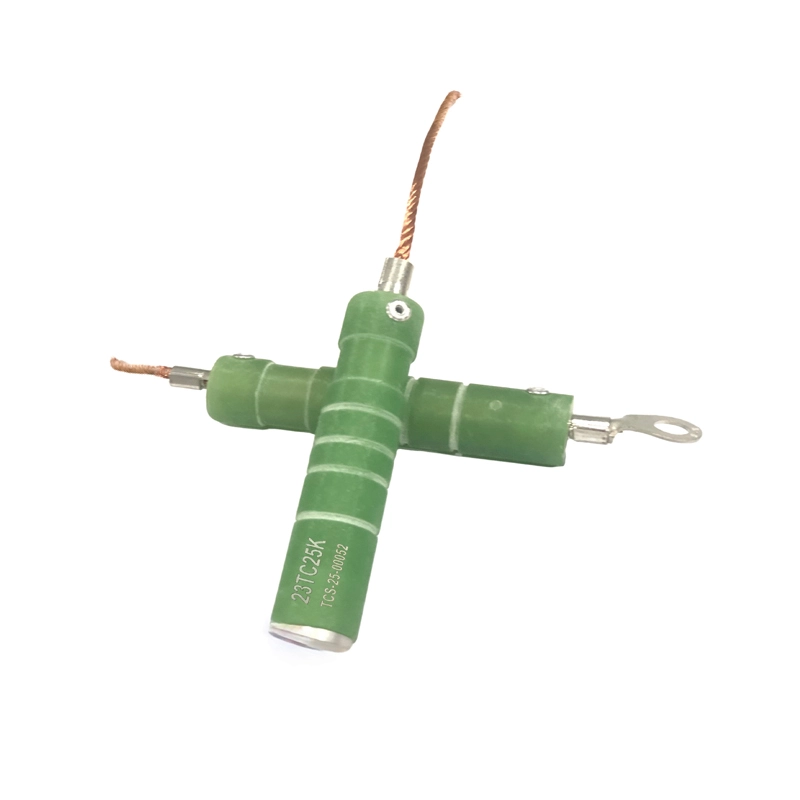

Photos
